Light Weight Deflectometer (LWD)
(photo gallery)
Quality Assurance & Quality Control of Earthwork Projects

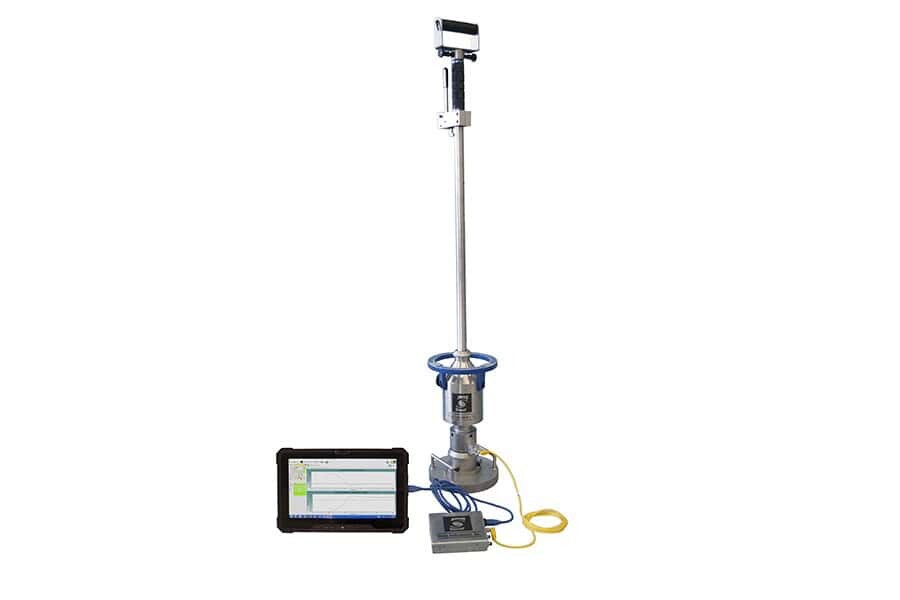

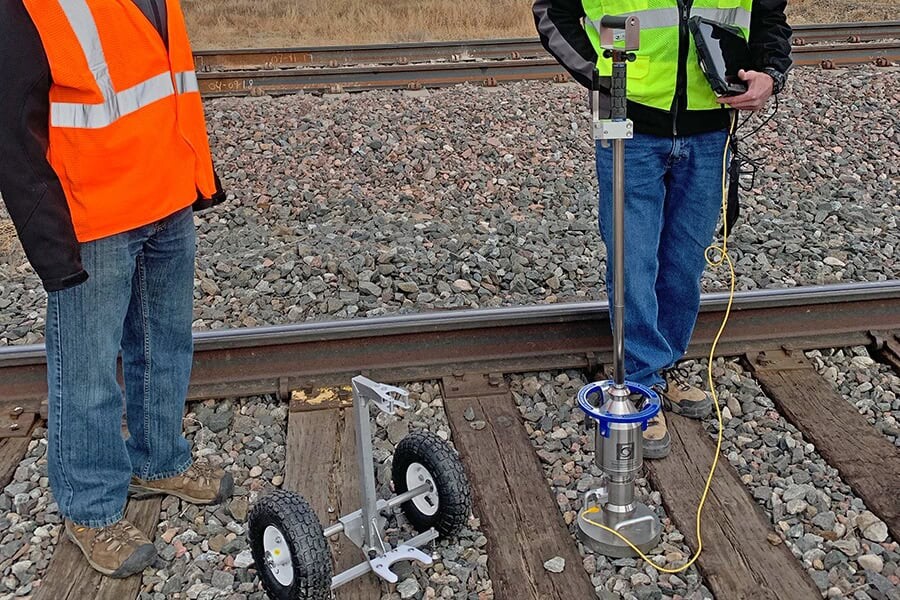

Measure in-situ soil modulus to ensure soil compaction requirements are met project-wide on subgrade, subbase and roadbase. Designed and engineered at Olson Instruments' corporate office in Colorado, USA, this light weight deflectometer conforms to ASTM standard E2835-11 for plate deflection measurement due to an impulse load and is used with your user-supplied tablet. Importantly, the Light Weight Deflectometer LWD-1 measures the actual impulse force in order to calculate stiffness (peak force ÷ peak displacement) and modulus based on soil type (granular, clay, or mixed).

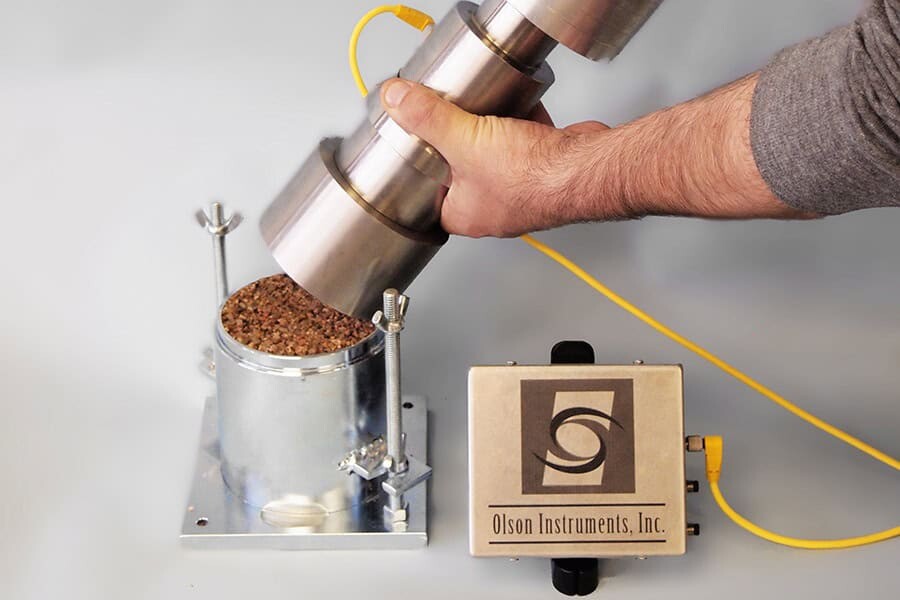

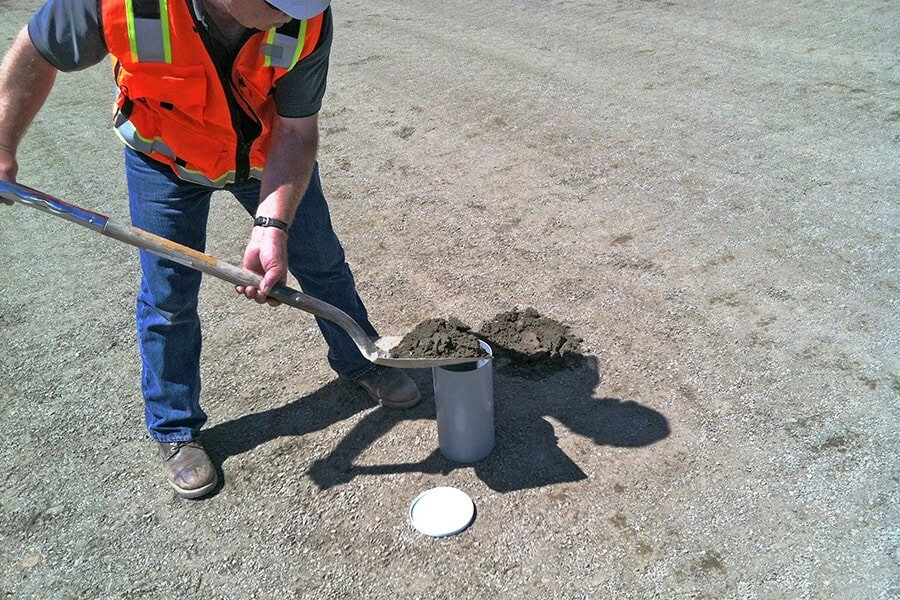

Olson's LWD-LAB option is a compact unit with a lighter weight to match loading pressure and impulse duration time in Proctor molds to in situ field testing for determination of the target soil modulus. Using LWD provided modulus and moisture content from field samples, our LWD plots ensure the lab Target elastic modulus has been achieved. A recently funded study by the Maryland Department of Transportation indicated that the LWD modulus-based compaction QA approach can replace conventional Nuclear Density Gauge testing of roadbase and subgrade compaction.
Features & Benefits
Embedded load cell measures actual impact force | Calibrated geophone receiver measures plate deflection |
Simple design embeds spring assembly inside falling weight | Add-On Impact Weights available (5kg and 10kg) |

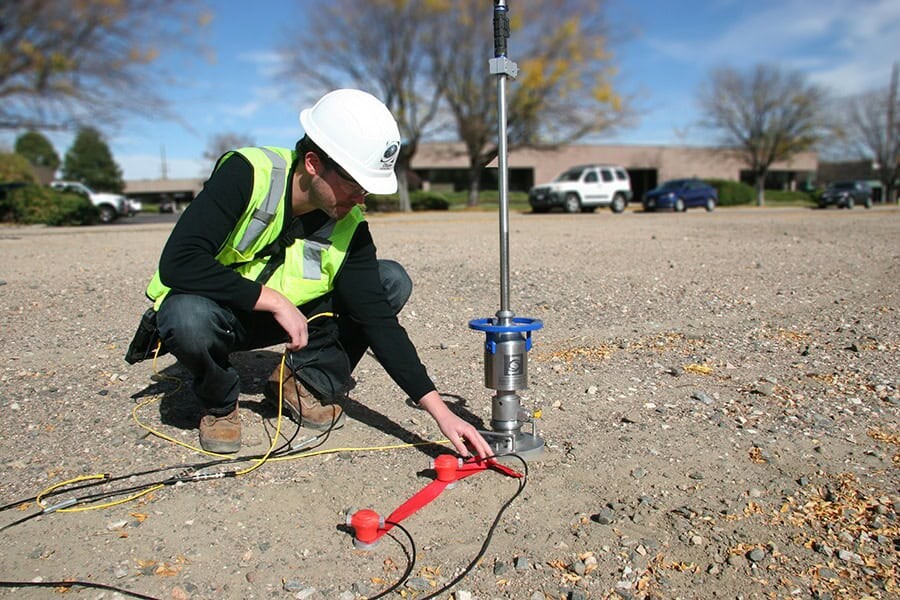

Multiple plate diameters available (300, 200, 150 and 100 mm (~ 12, 8, 6 and 4 inch) | Two additional external geophones can be added to the system for deflection basin or Spectral Analysis of Surface Waves (SASW) layer moduli determination |
Durable stainless steel design/construction | Transport Cart (included) |
Quick and easy onsite testing; can be performed with little or no special certification with immediate results displayed in either english or metric units | Portable and lightweight - single person operation |
Specifications
27 kg (60 lb) total unit weight | 1.25 m (50 in) total unit height |
600 mm (2 ft) drop height | 6.9 kN (1,550 lb) impulse loading |
15 - 20 millisecond impulse duration | 10 kg (22 lb) impact weight |
LWD-1 [Field Model]
Description: | Test For: | Applicable On: |

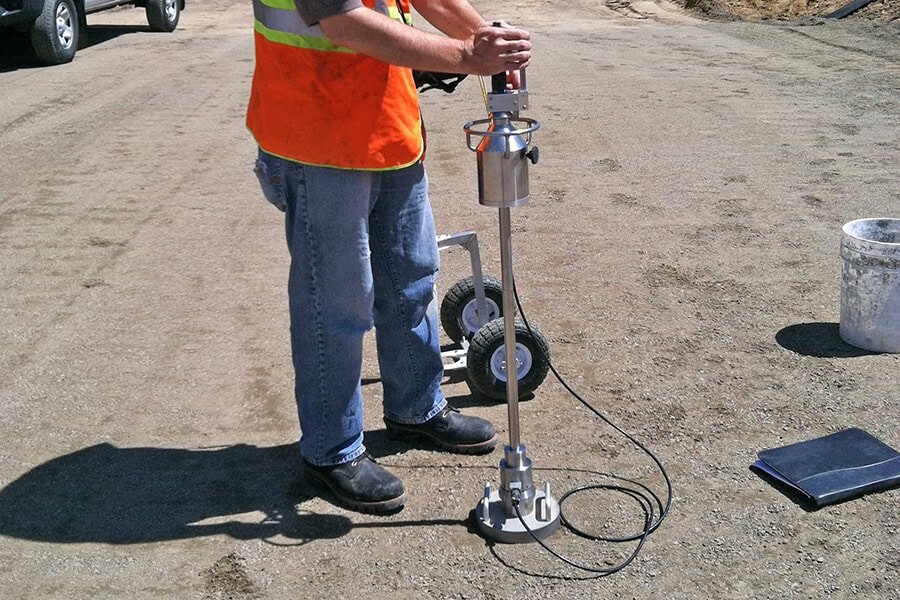

The LWD-1 Model is the base model designed to be used in the field. This system includes a 22 lb (10kg) impact weight with a 2 ft (600mm) drop height, and an 8 inch (200mm) base plate. |
|
|
LWD-LAB Model
Description: | Test For: | Applicable On: |
The LWD-LAB Model is designed to be used in the laboratory. This system includes a 8 lb (3.6kg) impact weight with a 10 inch (250mm) drop height, and a 4 inch (100mm) base plate. |
|
|
Hands-on training is available for all of our NDE test methods at our Wheat Ridge, Colorado (USA) location, which is a suburb located approximately 15 minutes northwest of downtown Denver. Training may be available at your location by one of our agents/engineers upon special arrangement.
